Mini Survey Prisms

Mini prisms give you a compact, lightweight target for setout, monitoring and construction layout work where a full-size prism assembly isn’t necessary. Their smaller size makes them easy to carry between points and practical for tight-access areas or shorter pole setups.


Terra360 stocks a range of mini prisms to suit different survey applications, from lightweight peanut prisms and compact L-bar options through to mini prism sets and 360° models for robotic work.

Compare Our Mini Survey Prisms

Product Best for Works with
Mini Peanut Prism PNP-R1 Lightweight, budget-friendly survey work Most instruments
Micro Mini Prism L-Bar Tight-access applications Most instruments
Yellow Mini Prism (YMP-25) High-visibility set-out, topographic, and general surveying tasks Most instruments
Mini Prism Set (MPP-17) Useful when measuring control points, monitoring movement, or working in tight spaces Leica, Nikon, Pentax, Sokkia, Topcon, Trimble
Mini Prism Set (MPP-101) High-precision land surveying, construction layout, monitoring, and engineering projects Leica, Nikon, Pentax, Sokkia, Topcon, Trimble
Mini 360° Prism with L-Bar Compact robotic survey work All instruments

Product compatibility, prism constants and specifications should always be checked against the individual product listing before use.

Mini Prisms for Setout and Construction Layout

For day-to-day setout work, a mini prism can provide a practical balance between portability and accurate targeting.

Compact models are easier to carry around site and can be positioned in areas where larger prism assemblies may be inconvenient. Options such as the MPP-17, MPP-101, Mini Peanut Prism and Yellow Mini Prism give surveyors several configurations to choose from depending on the job.

Where visibility is important, a brightly coloured prism assembly can also make the target easier to locate around a busy construction site.

Mini Prisms for Tight-Access Surveying

Some survey points are difficult to reach with a standard prism assembly. A smaller prism and compact mount can make positioning easier around structures, edges, confined spaces and other restricted areas.

The Micro Mini Prism L-Bar is one option within the Terra360 range for applications where a compact mounting setup is required.

Always check the dimensions, offset and prism constant of the specific model before using it for measurement work.

Mini 360° Prisms for Robotic Total Stations

Robotic total stations need to maintain tracking as the surveyor moves around the site. For this type of work, a 360° prism is generally more suitable than a standard single-face mini prism.

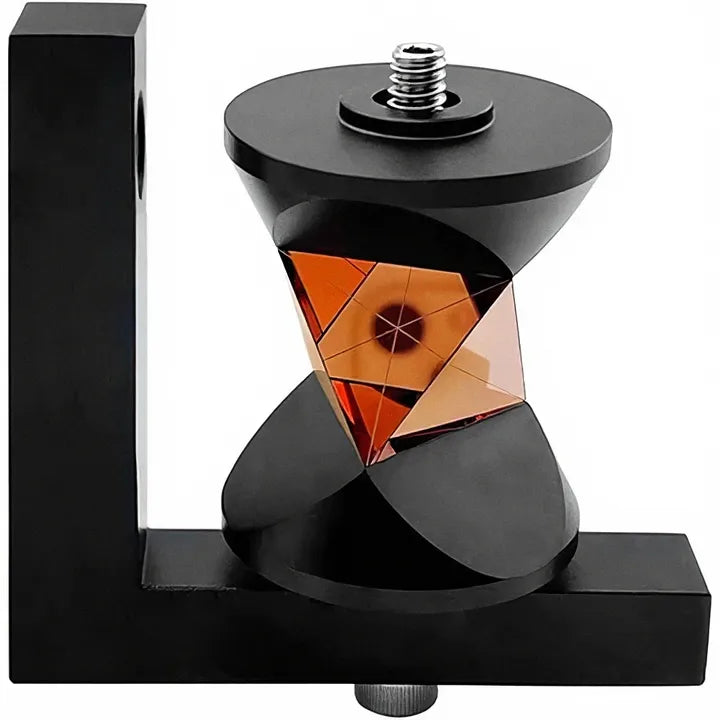

The Mini 360° Prism with L-Bar combines a compact setup with 360° tracking, making it an option for surveyors who want a smaller target for robotic setout and layout work.

Instrument compatibility should still be confirmed before ordering.

Why Choose Mini Prisms?

Mini prisms are useful when you need a smaller and more portable surveying target without the bulk of a full-size prism assembly.


Their compact size can make them particularly useful for:

Construction setout
Detail surveys
Monitoring work
Tight-access locations
Short-pole setups
Surveyors moving frequently between points

Different models are suited to different instruments and applications, so always check the prism constant and compatibility before use.

Mini Survey Prism FAQs

Mini prisms are used for setout, detail surveys, monitoring and construction layout where a smaller, lighter target is more practical than a full-size prism. They can be particularly useful when you’re moving between points regularly or working in confined areas.

Not always. Compatibility can vary between prism models and instruments. You also need to make sure the correct prism constant is entered into your total station, so check the specifications for both the prism and your instrument before use.

The correct prism constant depends on the model. For the Mini Prism Set (MPP-17), use +17.5 mm for Leica total stations and −16.9 mm for Nikon, Pentax, Sokkia, Topcon and Trimble instruments.

The MPP-101 is a separate product from the MPP-17, so its prism constant should be checked against its own product specifications.

A mini prism can be a good choice when portability, compact size and easy positioning are important. A full-size prism may be more suitable when you need a larger target or are working over longer distances.

The best option depends on your instrument, working range and the type of survey work you’re carrying out.

Yes, provided you choose a prism suitable for robotic tracking. For continuous tracking, a 360° prism is generally more appropriate than a standard single-face mini prism.

Terra360’s Mini 360° Prism with L-Bar provides a compact option for compatible robotic total stations.
