Frequently asked questions
The LPR-01 provides prism constant settings for Leica, Nikon, Sokkia, Topcon, Trimble and Pentax total stations. Confirm that your instrument supports the required reflector setting or allows the constant to be entered manually.
Use +36.4 mm for Leica total stations. For Nikon, Sokkia, Topcon, Trimble and Pentax instruments, use +2.0 mm. Check the selected constant before measuring to avoid a consistent distance error.
The applicable correction is +36.4 mm under the Leica convention or +2.0 mm for the other listed instrument brands. Terra360 does not specify a separate height or mounting offset for the base.

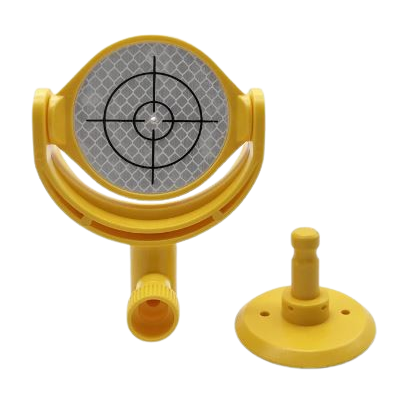

The tilting design allows the reflector face to be aimed towards the total station after the base has been positioned. This makes it a practical option for fixed survey points, construction checks and monitoring locations where a low-profile reflector is preferred. The specific measurement range is not listed.
The product includes a base, but the page does not state its thread size, dimensions or mounting method. Confirm these details with Terra360 before ordering if it must connect to an existing bracket, pole, bolt or monitoring installation.
