Why This Instrument

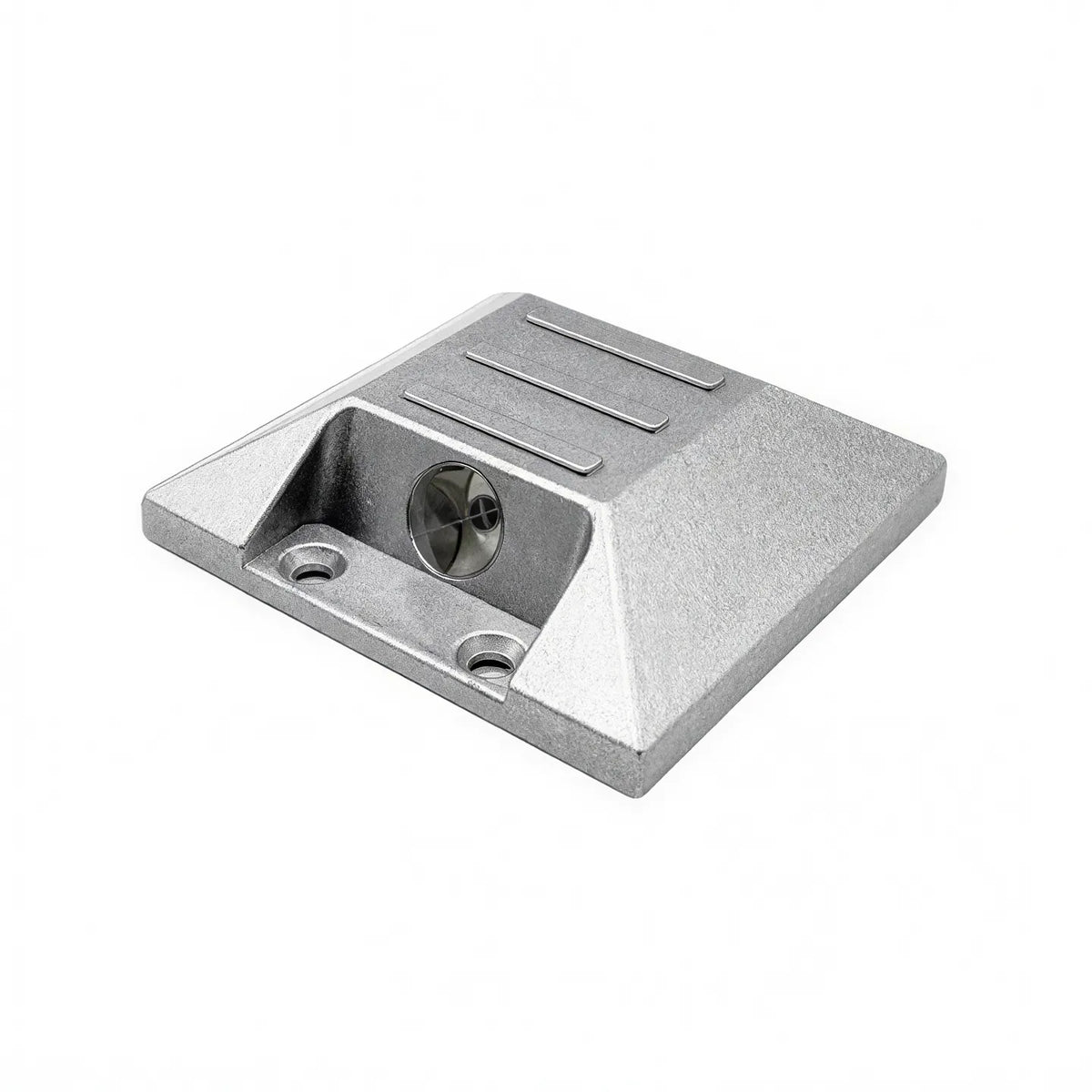

The MPC102 Cats Eye Prism is built for monitoring work where surveyors need a low-profile, durable and repeatable target installed in a fixed or semi-permanent position. Its +20° angled housing improves line-of-sight acquisition, helping the total station pick up the target more efficiently from practical field positions.This model is particularly suited to deformation and movement monitoring where repeated measurements need to reference the same point over time. For Australian road, bridge, rail and mining projects, the MPC102 gives crews a compact monitoring target that can stay in place and support consistent measurement across multiple survey visits.
What Sets It Apart
- 17 mm prism diameter: Provides a compact reflector for monitoring points where a full-size prism would be too large or exposed.
- +20° angled housing: Improves line-of-sight acquisition by presenting the reflector at a practical angle for total station observations.
- CNC aluminium housing: Gives the prism a robust body suitable for road, rail, bridge, mining and civil monitoring environments.
- Weather-resistant design: Helps protect the prism during long-term outdoor monitoring on exposed infrastructure sites.
- Up to 300 m measuring range: Supports practical monitoring observations across road pavements, bridges, rail corridors and mine sites.
- Permanent or semi-permanent installation: Allows surveyors to establish repeatable monitoring points that remain in position between measurement cycles.
- Suitable for deformation monitoring: Helps crews track movement in bridges, settlement zones, rail tracks, pavements and mining ground conditions.
- Low-profile monitoring target: Reduces obstruction risk compared with larger prism assemblies, making it practical for installed monitoring locations.
| Product | Cats Eye Prism |
| Part Number | MPC102 |
| Prism Type | Fixed monitoring prism |
| Prism Diameter | 17 mm |
| Primary Use | Road pavement monitoring, bridge deformation monitoring, mining ground movement monitoring, settlement monitoring and rail track movement monitoring |
| Distance Measurement | Up to 300 m measuring range for monitoring observations |
| Line-of-Sight Design | +20° angled housing for improved target acquisition |
| Housing | CNC aluminium |
| Weather Protection | Weather-resistant design for exposed site conditions |
| Installation Type | Permanent or semi-permanent installation |
| Compatible Workflows | Deformation monitoring, settlement monitoring, road monitoring, bridge monitoring, rail track movement monitoring and mining movement surveys |
| Instrument Compatibility | Suitable for compatible total stations when the correct target and site setup are used |
What’s Included
- MPC102 Cats Eye Prism
- CNC aluminium monitoring prism housing
- Integrated 17 mm reflector
Package contents may vary depending on the selected installation setup. Contact Terra360 before ordering if you need to confirm mounting requirements for road, bridge, rail, mining or settlement monitoring applications.
Works With
The MPC102 Cats Eye Prism works with monitoring and total station workflows used across Australian civil, infrastructure, rail and mining projects, including:
- Road pavement monitoring programs
- Bridge deformation monitoring setups
- Mining ground movement monitoring
- Settlement monitoring points
- Rail track movement monitoring
- Repeat total station observation workflows
- Permanent and semi-permanent monitoring installations
This prism is best used where surveyors need to return to the same monitoring point over time and capture repeatable measurements from a known target location.
Australian Support
Terra360 supplies survey and monitoring equipment for Australian civil, construction, rail, mining and infrastructure teams, with local support before and after purchase. The MPC102 Cats Eye Prism is backed by the applicable Australian warranty terms for this product, with Terra360 acting as your point of contact for warranty, compatibility and product support.
For help confirming site suitability, measuring range, installation requirements or total station workflow compatibility, contact Terra360 before ordering.
Frequently asked questions
The MPC102 Cats Eye Prism is best used for road pavement monitoring, bridge deformation monitoring, mining ground movement monitoring, settlement monitoring and rail track movement monitoring.
The +20° angle helps improve line-of-sight acquisition, making it easier for a total station to observe the target from practical field positions.
Yes. The MPC102 supports permanent or semi-permanent installation, making it suitable for repeat monitoring points that need to remain in place between survey visits.
The MPC102 supports measurements up to 300 m, making it practical for many road, rail, bridge, settlement and mining monitoring applications.
Yes. The weather-resistant CNC aluminium housing supports exposed monitoring installations across civil, rail, mining and infrastructure environments.
Yes. The MPC102 is suitable for bridge deformation monitoring where surveyors need fixed reference points for repeat total station observations.
